技術參數
| 型號 |
進料粒度 (mm) |
出料粒度 (mm) |
電機功率 (kw) |
產量 (t/h) |
| LP500 | ≤60 | <Φ0.7 | 11 | 1-3 |
| LP600 | ≤60 | <Φ0.7 | 15 | 1-5 |
| LP800 | ≤60 | <Φ0.7 | 15 | 2-8 |
鏈?zhǔn)椒鬯闄C(jī)
- 鏈?zhǔn)椒鬯闄C(jī) 用途與特點： 鏈?zhǔn)椒鬯闄C(jī)按安裝形式分為立式鏈?zhǔn)椒鬯闄C(jī)和臥式鏈?zhǔn)椒鬯闄C(jī)兩種結構形式。立式鏈?zhǔn)椒鬯闄C(jī)為單轉子，臥式鏈?zhǔn)椒鬯闄C(jī)為雙轉子。立式鏈?zhǔn)椒鬯闄C(jī)是復混肥...
- 咨詢熱線：186-0384-7333
-
產品詳情
用途與特點：
鏈?zhǔn)椒鬯闄C(jī)按安裝形式分為立式鏈?zhǔn)椒鬯闄C(jī)和臥式鏈?zhǔn)椒鬯闄C(jī)兩種結構形式。立式鏈?zhǔn)椒鬯闄C(jī)為單轉子，臥式鏈?zhǔn)椒鬯闄C(jī)為雙轉子。立式鏈?zhǔn)椒鬯闄C(jī)是復混肥行業使用最普遍的粉碎機之一，該機在粉碎過程中使用同步轉速的高強度耐磨硬質合金鏈條，為了防止粘料及機體鋼板的摩擦，設計機器時，在機體內加裝了橡膠板內襯，不易粘壁，便于清理；在機體的兩側設置有快開式檢修門，方便機器的維修和養護；機體、傳動裝置安裝在一個型鋼制成的底座上，保持機器平穩運行，加長機器使用壽命。 該機適用于原料及返料的粉碎，同時也廣泛用于化工、建材、礦山等行業。
Fertilizer Crusher Series

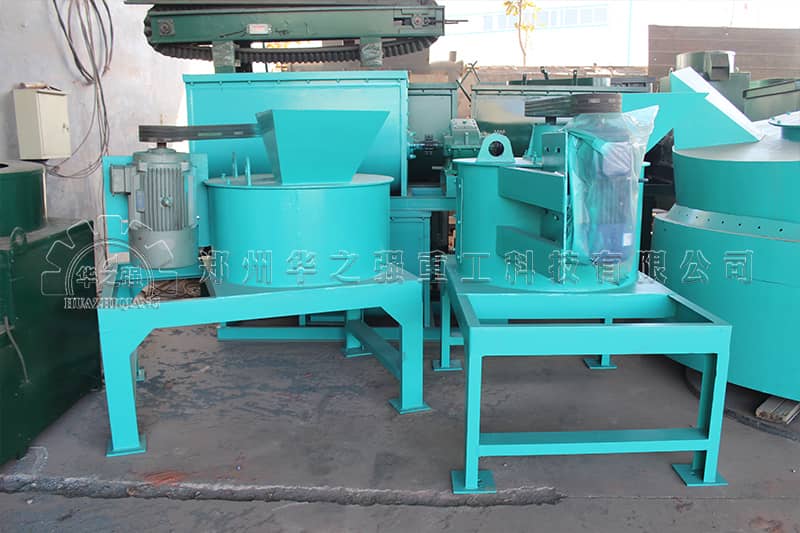

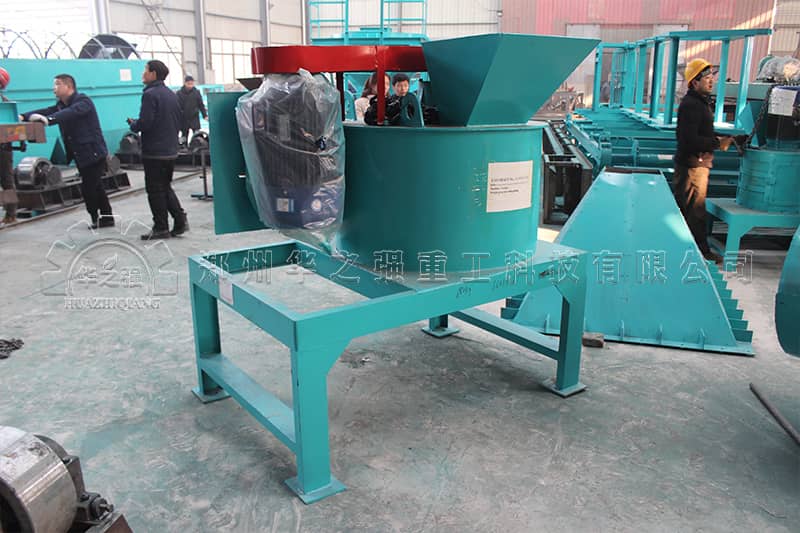

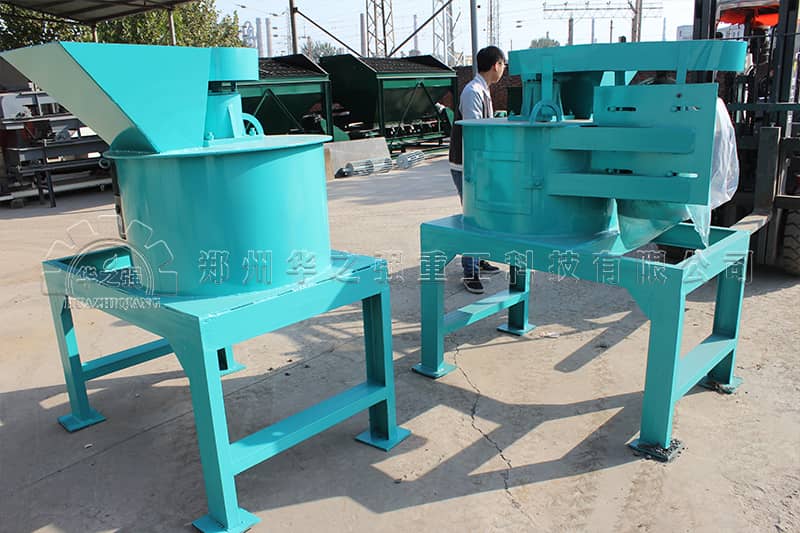

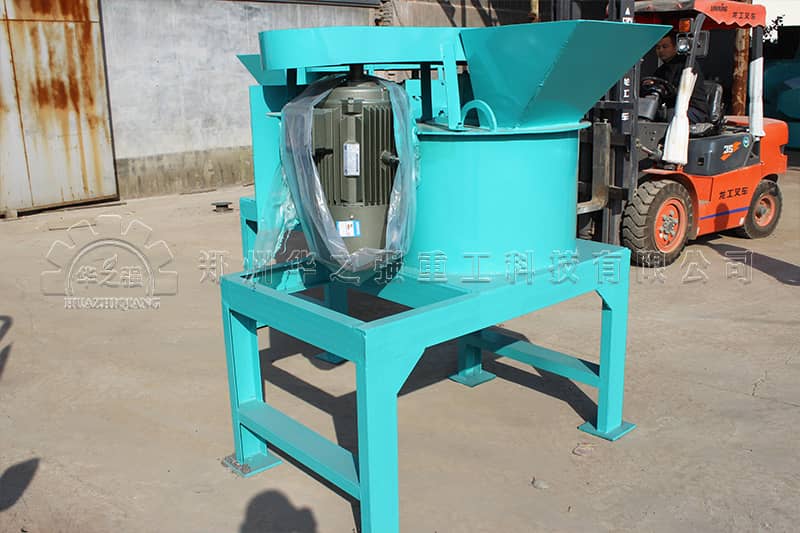

Chain Crusher
Use and Features:
Chain crusher can be divided into two types: vertical chain crusher and horizontal chain crusher. The vertical chain crusher is single rotor, and the horizontal chain crusher is double rotors. Vertical chain crusher is one of the most common crusher used in the compound fertilizer industry. In the process of crushing, the machine uses a high strength and wear-resistant hard alloy chain with synchronous rotating speed. For prevent sticky material and machine body steel friction, a rubber lining is added to the machine, which for materials is not easy to stick to the wall, and is easy to clean up; There are fast open maintenance doors on both sides of machine body to facilitate the maintenance; the machine body and transmission device are installed on the base of a structural steel, keeping the machine running smoothly and lengthening the service life of the machine. The machine is suitable for crushing raw materials and recycled materials, and it is also widely used in chemical industry, building materials, mining and other industries.
適用于有機肥、復合肥生產中塊狀物的破碎，同時用于化工、建材、礦山等行業。在粉碎過程中采用同步轉速的高強度耐麿硬質合金鏈板，進出料口設計合理，破碎物料均勻，不易粘壁，便于清理。粉碎機采用優良的鋼材，進行系統優化設計，產量大，可靠性高。
